Pass Thru Cabinets

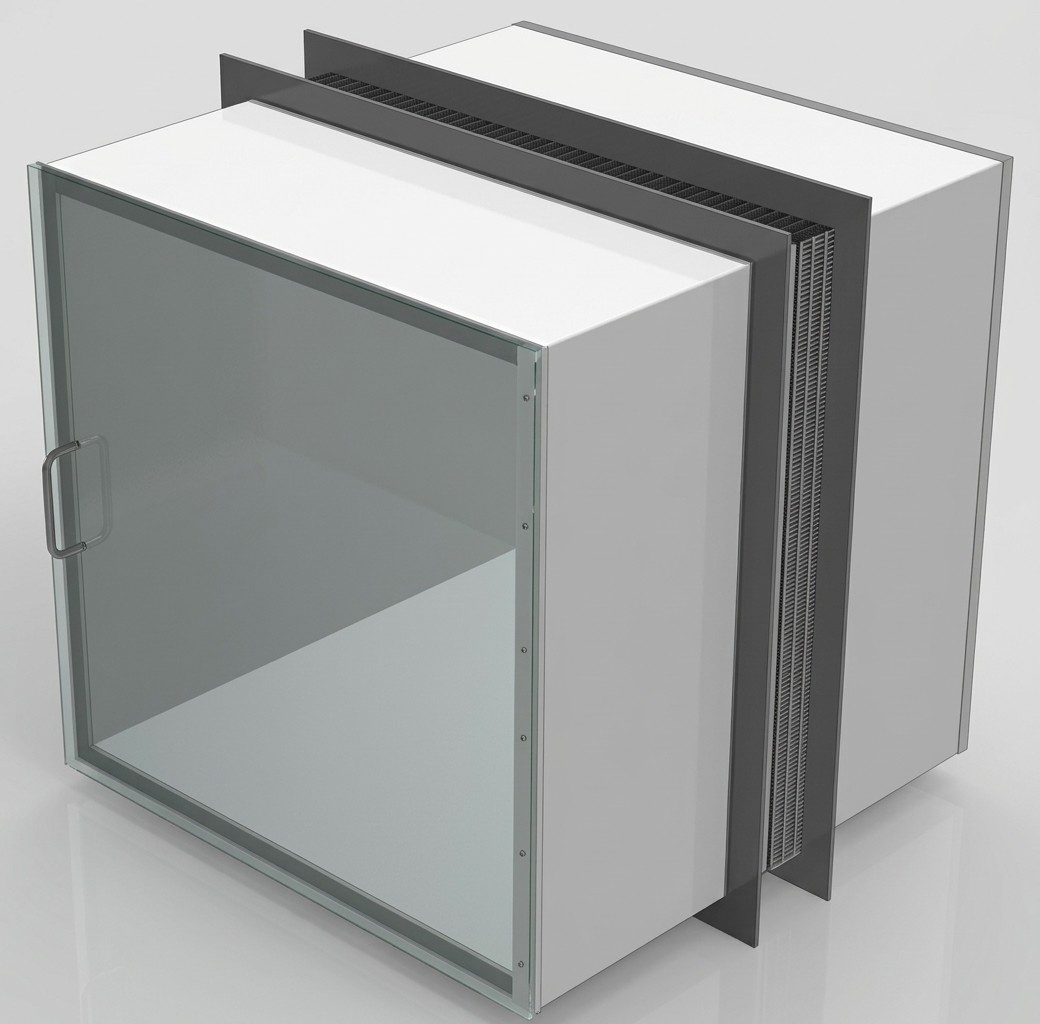

ABTECH STANDARD PASS THRUS: SHOWN WITH CLEAR ACRYLIC DOOR, ALUMINUM HANDLES, PIANO HINGES, MANUAL INTERLOCK, AND TENSION CATCHES.
Abtech Pass Thru Cabinets help control contaminants entering the Cleanroom during pickup and delivery of product or supplies. Delivery personnel and contaminants remain outside the Cleanroom; yield and productivity is thereby increased because personnel remain clean and on the job. Pass Thru Cabinets are available in white laminate construction as well as cold-rolled steel, stainless steel, polypropylene and other materials. Standard units feature interlocking acrylic doors with smoke seal gasket to protect your Cleanroom envelope. All inside and outside surfaces are featured with 3/4″ high density particle board core for widths up to 28″. All lengths over 30″ are 1″ core.
Doors are 1/2″ clear acrylic with aluminum handles, full length piano hinge, manual interlock, tension catch and are gasketed for positive seal. Doors provide easy access and complete visibility.
NOTE : When ordering Pass Thrus, add approximately 4″ to the depth dimension to include doors and handles. Hole rough cut in wall should be 1/8″-1/4″ larger than O.D. of the Pass Thru. All Pass Thru Cabinets are shipped in a wooden crate.
Available Models & Sizes

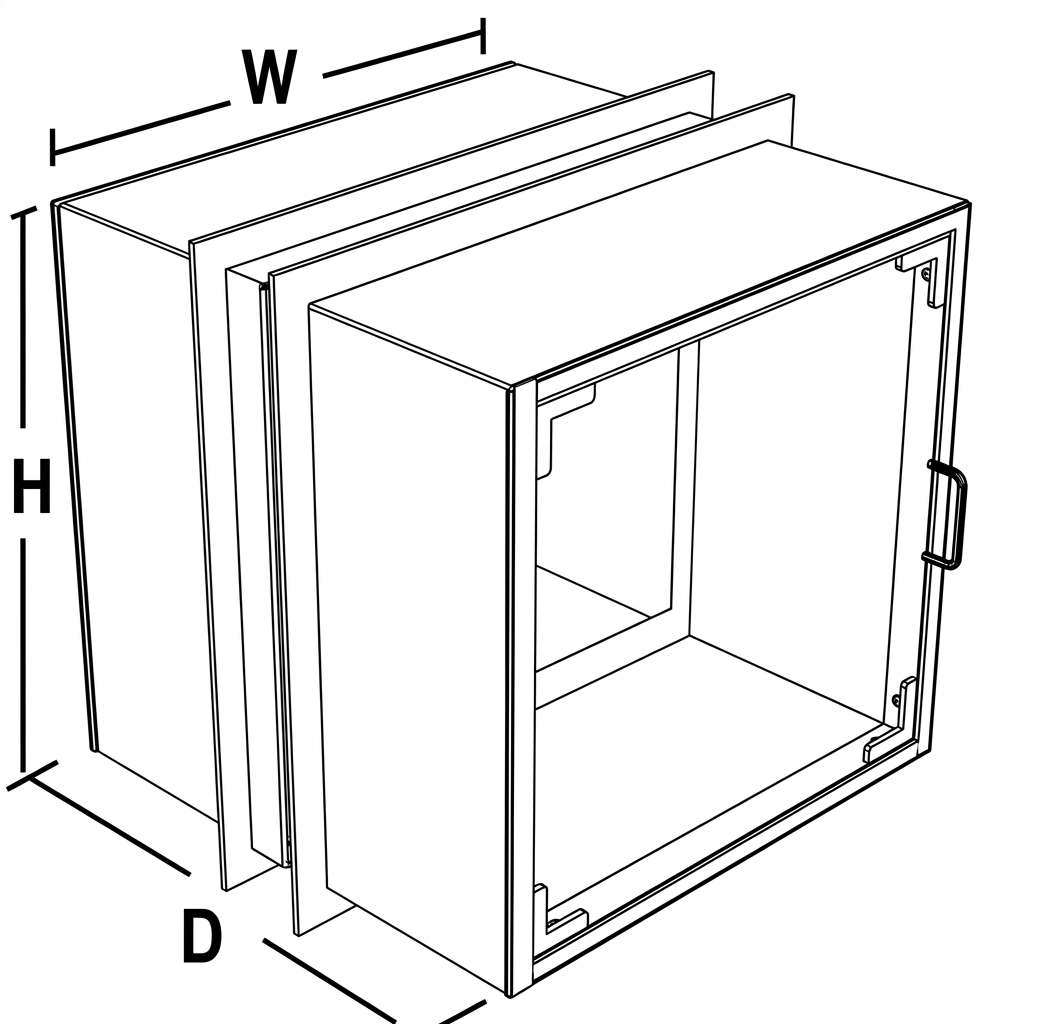

| Model # | Exterior Dimensions (HxWxD) |
|---|---|
12" x 12" x 12" | |
12" x 18" x 12" | |
18" x 20" x 18" | |
12" x 16" x 12" | |
18" x 18" x 18" | |
12" x 14" x 12" | |
24" x 28" x 24" | |
24" x 24" x 24" | |
18" x 24" x 18" | |
18" x 28" x 18" | |
24" x 30" x 24" | |
24" x 36" x 24" | |
12" x 12" x 12" | |
12" x 14" x 12" | |
12" x 16" x 12" | |
12" x 18" x 12" | |
18" x 18" x 18" | |
18" x 20" x 18" | |
18" x 24" x 18" | |
18" x 28" x 18" | |
24" x 24" x 24" | |
24" x 28" x 24" | |
24" x 30" x 24" | |
24" x 36" x 24" |
Have Questions About This Product?
OPTIONS:
- Stainless steel inner liner with white laminate outside surfaces
- All steel construction with white powdercoat finish
- Mounting Frame, stainless steel
- Double Doors
- HEPA Filtered
